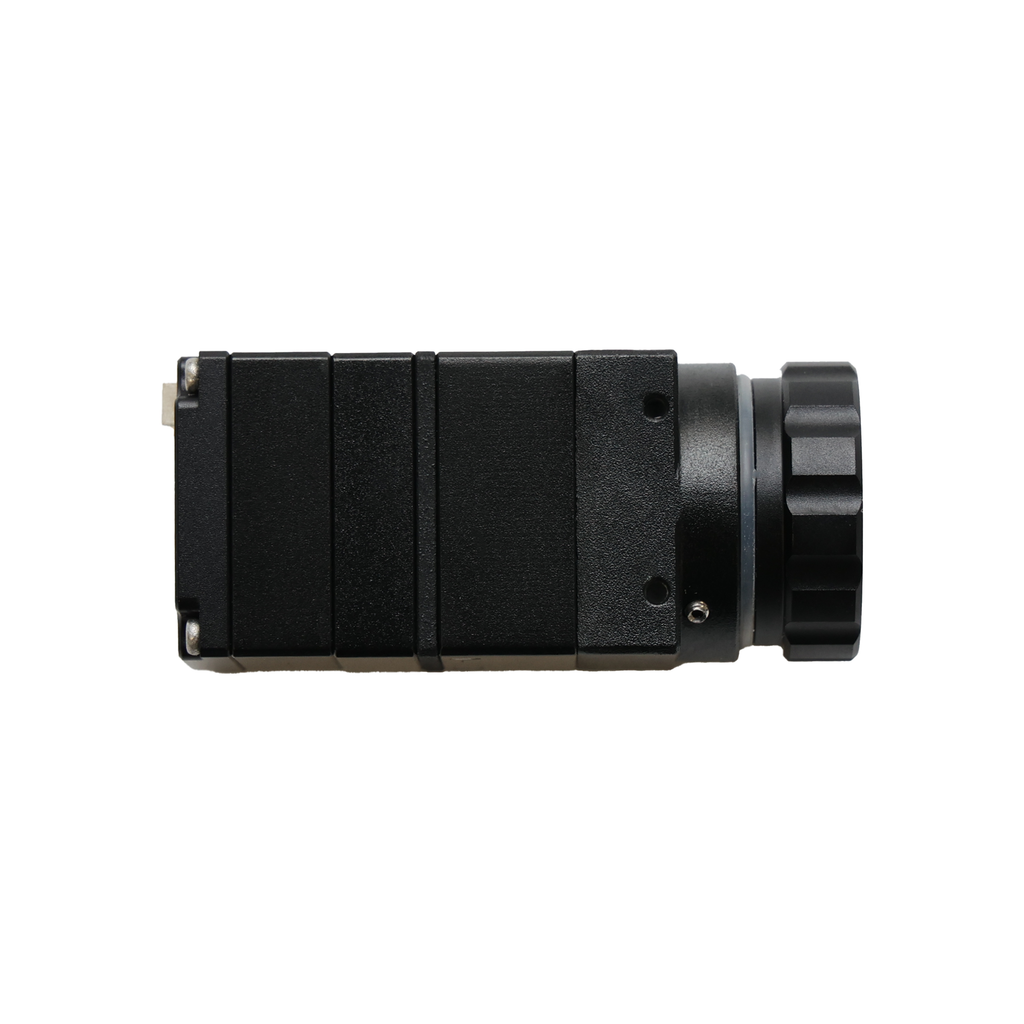

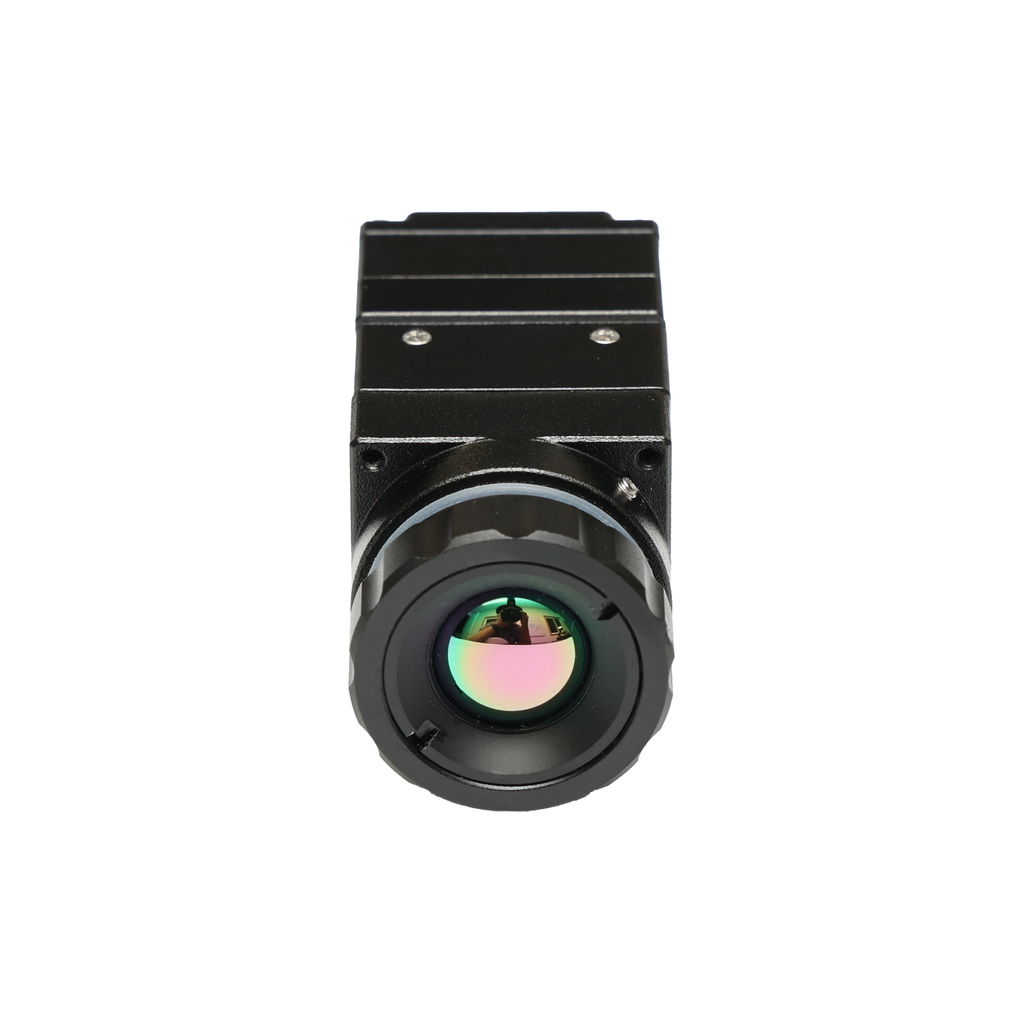

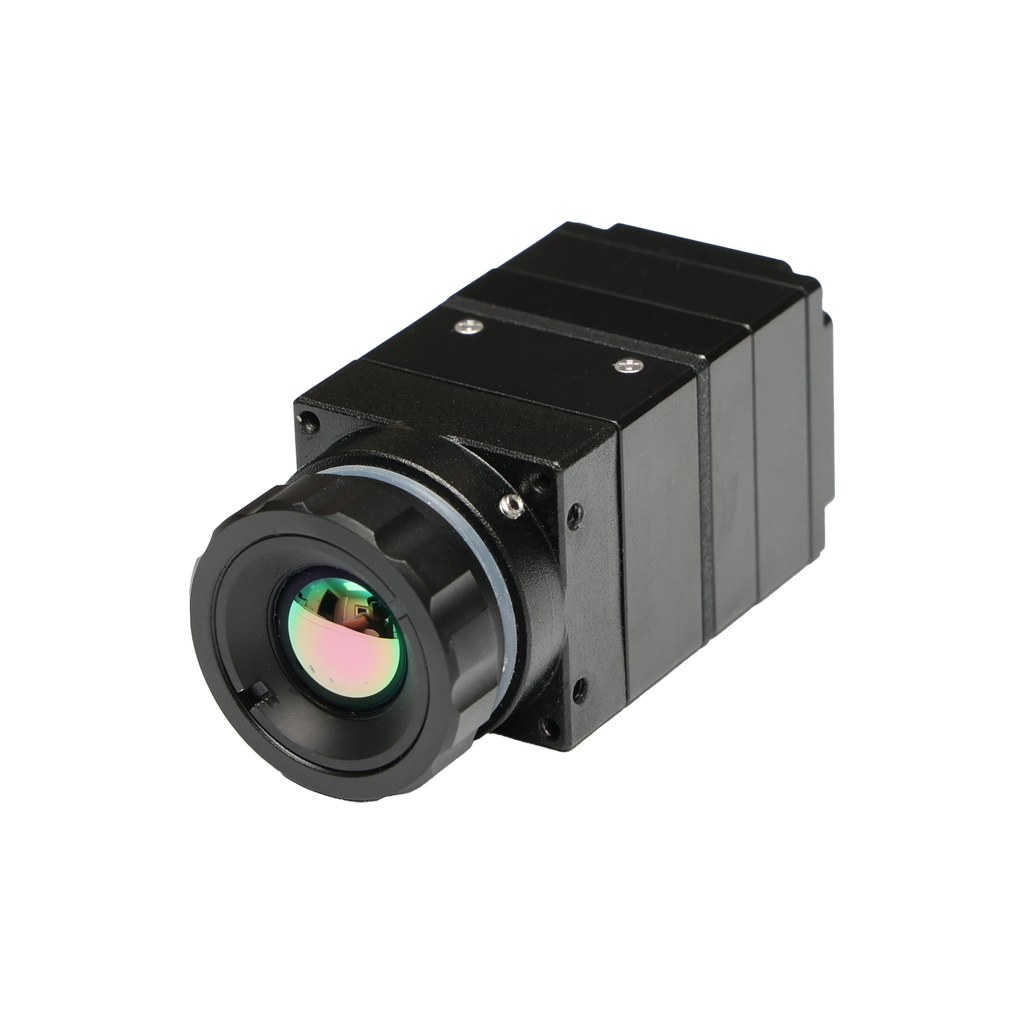

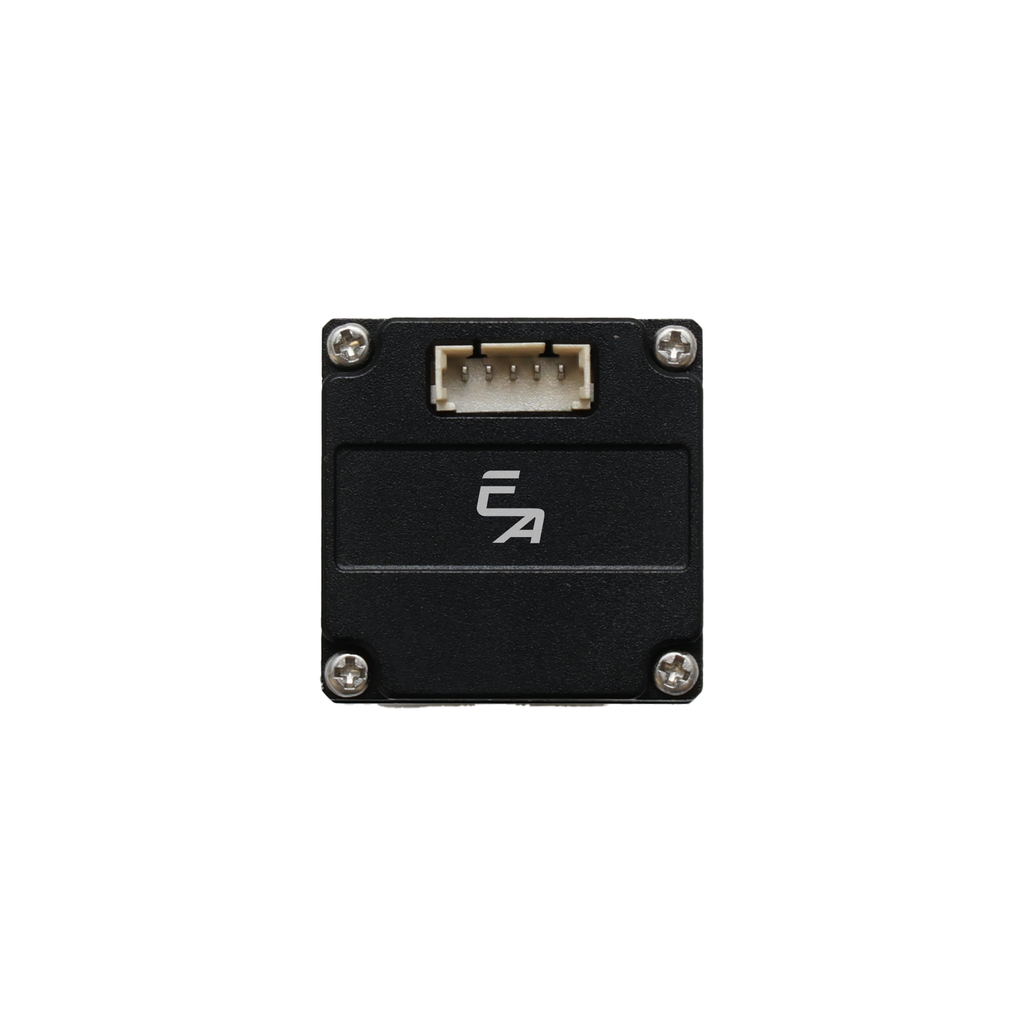

Designed for operators who require reliable thermal imaging and real-time situational awareness, the IronSight Thermal FPV Camera delivers high-performance infrared video in a compact, lightweight package optimized for unmanned systems.
Built around a 640 × 512 VOx thermal detector with a 62° horizontal field of view, the IronSight provides dependable thermal visibility for flight, navigation, inspection, surveillance, and mission support in darkness, smoke, haze, and other degraded visual environments.
Volume pricing available. For orders of 10 or more units, contact enterprise sales here
High-resolution thermal imaging helps operators detect personnel, vehicles, equipment, infrastructure, and other heat signatures with greater clarity.
The integrated 6.8mm lens provides a wide 62° HFOV, improving situational awareness, close-range navigation, search operations, and obstacle detection.
Thermal imaging remains effective in total darkness and can improve awareness through smoke, haze, light fog, vegetation, and other conditions where visible-light cameras are limited.
FPGA-based video processing provides real-time CVBS analog video output for FPV systems, goggles, ground stations, and existing analog UAS platforms.
With thermal sensitivity of ≤40mK NETD, the IronSight can distinguish subtle temperature differences for improved detection and environmental awareness.
Weighing less than 34g core without lens, the IronSight is designed for integration into Group 1 and Group 2 UAS platforms where size, weight, and performance are critical.
| Detector Type | VOx Uncooled Thermal Detector |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| Thermal Sensitivity | ≤40mK @ F/1.0, 300K |
| Video Output | Analog CVBS |
| Frame Rate | PAL: 25Hz progressive / 50Hz interlaced NTSC: 30Hz progressive / 60Hz interlaced |
| Lens | 6.8mm |
| Horizontal Field of View | 62° |
| Output | CVBS |
| Dimensions | 20 × 20 × 38 mm |
| Weight | <34g core without lens |
